Current Position: Home Products Air-Cooling Roots Vacuum Pump

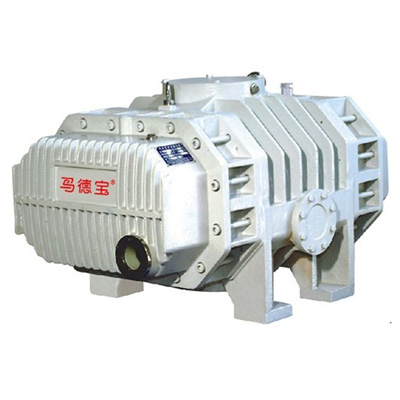

Air-Cooling Roots Vacuum Pump

Model:ZJQ600

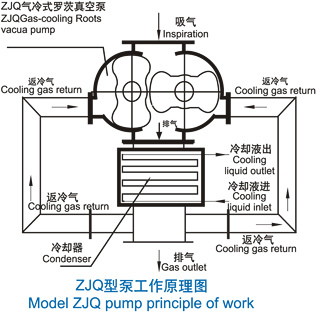

Relying on a suitable gas circulation inherently controlled by a cooler fitted outside, the series ZJQ roots pumps can be operated continuously for over-coming very high pressure differential without being overloaded.
Also can be operated with its exhaust pressure atmospheric gas. They own excellence of the general roots pump. They can be operated singly, also can be operated combining with backing pump.
When the pump is operated singly, the exhaust pressure atmospheric gas can cool the pump and a cooler is unnecessary, an ultimate pressure of approximate 130hpa at the inlet side can be attained.
The series ZJQ roots pumps can be operated in series and also be operated combining with normal roots pumps to make they bring feature of clean pump housing into full play. They can also be combined with backing pumps such as liquid ring pumps or rotary piston pumps to make themselves have a higher pumping speed near main pump even in higher pressure range and get different ultimate pressures from 105pa to 5×10-5pa.
Because of their high capacity, the series ZJQ roots pumps are widely used in many engineering fields requiring to be exhausted rapidly and low ultimate pressure or requiring to be exhausted cleanly and no oil pollution.

Model ZJO pump main performance-parameter table
Model Pumping speed
(L/S)
Ultimate pressure Maximum permissible dfferent pressure
(Pa)
inlet&outlet diameter
(mm)
compression ratio with zero throughput range of motor power
(Kw)
recommended rotating Seed
(r/min)
Single pump
(Pa)
With backing pump
ZJQ-30 30 2x104 不同配比
可獲得
105Pa~5
x
10-2Pa
8x104 63 25 0.75~5.5 3000
ZJQ-70 70 2x104 8x104 80 25 1.1~11 3000
ZJQ-150 150 1.6x104 8x104 100 30 3~15 3000
ZJQ-300 300 1.6x104 8x104 160 30 4~30 1500
ZJQ-600 600 1.6x104 8.7x104 200 35 7.5~55 1500
ZJQ-1200 1200 1.6x104 8.7x104 250 35 11~132 1500
ZJQ-1800 1800 1.3x104 8.7x104 320 40 15~200 1500
ZJQ-2500 2500 1.3x104 8.7x104 400 40 18.5~250 1000
ZJQ-3750 3750 1.3x104 8.7x104 400 40 30~355 1500
ZJQ-5000 5000 1.3x104 8.7x104 500 45 45~375 1000
ZJQ-12000 12000 - 2.0x104 500 45 75~280 1000

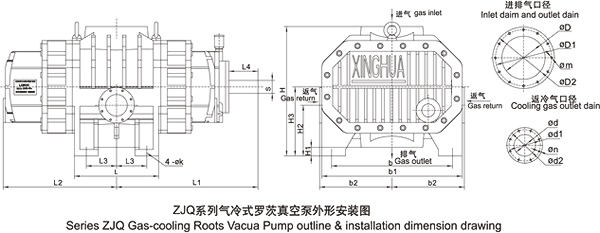

Model L L1 L2 L3 L4 b b1 b2 h h1 h2 h3 s K D D1 D2 d d1 d2 m n
ZJQ1500 210 410 330 72.5 60 370 310 210 385 25 165 205 42 18 100 145 165 63 110 130 8-M8 4-M8
ZJQ300 280 510 415 90 80 520 440 275 470 30 168 250 50 18 160 200 225 100 145 165 8-M8 8-M8
ZJQ600 390 650 520 140 100 560 650 335 600 40 235 320 60 22 200 260 285 100 145 165 12-M10 8-M10
ZJQ1200 480 485 745 180 130 780 650 450 750 30 270 400 75 25 250 310 335 160 200 225 12-M10 8-M10
ZJQ1800 730 610 870 305 130 780 650 450 750 30 270 400

75

25 250 310 335 160 200 225 12-M10 8-M10
ZJQ2500 780 880 1040 290 170 1160 1060 590 1060 60 390 560 100 28 400 480 510 160 200 225 16-M12 8-M10
ZJQ3750 780 880 1040 290 170 1160 1060 590 1060 60 390 560 100 28 400 480 510 160 200 225 16-M12 8-M10
ZJQ5000 975 880 1140 290 200 1320 730 590 1320 90 485 695 125 34 500 580 610 200 200 285 16-M12 8-M10
